720W/860W/1060W Pavo Series Foldable LED Growth

Designed for all growing environment reaching high level PPFD

The foldable LED growth lamp has an ultra thin design and can be folded up to 180 degrees. The lamp body is integrated, making installation convenient and fast.

The lamp has a full spectrum and its brightness can be intelligently adjusted. Users can adjust the light intensity according to the growth needs of plants at different stages, thereby improving quality and yield.

Suitable for basement planting, greenhouse planting, experimental planting, and greenhouse planting.

Pavo series foldable LED growth feature

‌Ultra-High Photon Efficacy

Equipped with cutting-edge LED chips delivering 2.9 μmol/J efficiency, maximizing PPF (Photosynthetic Photon Flux) per watt for accelerated plant growth.

‌Industrial Active Cooling System

Patented turbine-ventilated design + aerospace-grade aluminum heatsink achieves thermal resistance<0.3°C/W, ensuring <5% lumen depreciation over 30,000 hours.

3-Channel Independent Dimming × 0-10V Precision Control

Enables 0-10V stepless dimming (±1% accuracy) for red/blue/white spectra, allowing linear adjustment of intensity and ratios to optimize light recipes across growth stages. (DLC dimming protocol & Zhaga interface compatible)

Agricultural-Grade Protection

IP65 waterproofing + 5kV surge protection ensures reliable operation in extreme environments (-30°C to 55°C / 95% RH), ideal for greenhouses and vertical farms.

Modular Power System

Distributed drivers (12V/24V/36V selectable) with redundant circuitry reduce failure rates to 0.2%, supporting 24/7 continuous operation.

Smart Farming IoT Integration

Dual RS485/ZigBee connectivity enables cloud-based cluster control of intensity/spectrum/scheduling, cutting labor costs by 30% through centralized automation.
100+ After-Sales Service Centers.

Get Your Custom Quote

High-efficiency branded LED chips with full-spectrum light output

Our Full-spectrum enriched with red and blue peaks to drive robust photosynthesis and plant structure while emphasizing the green waveband to be versatile with any crop type or cultivation environment.

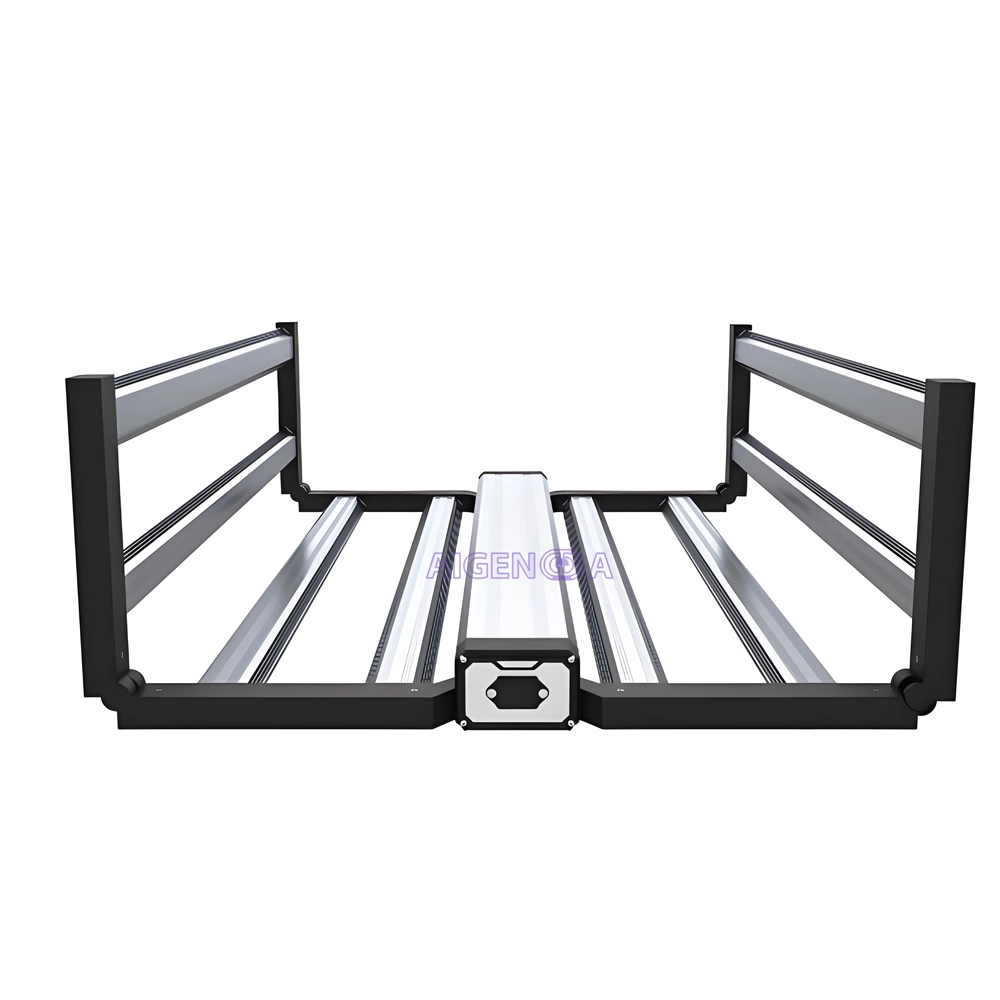

720W/860W/1060W Pavo Series Foldable LED Growth(1)

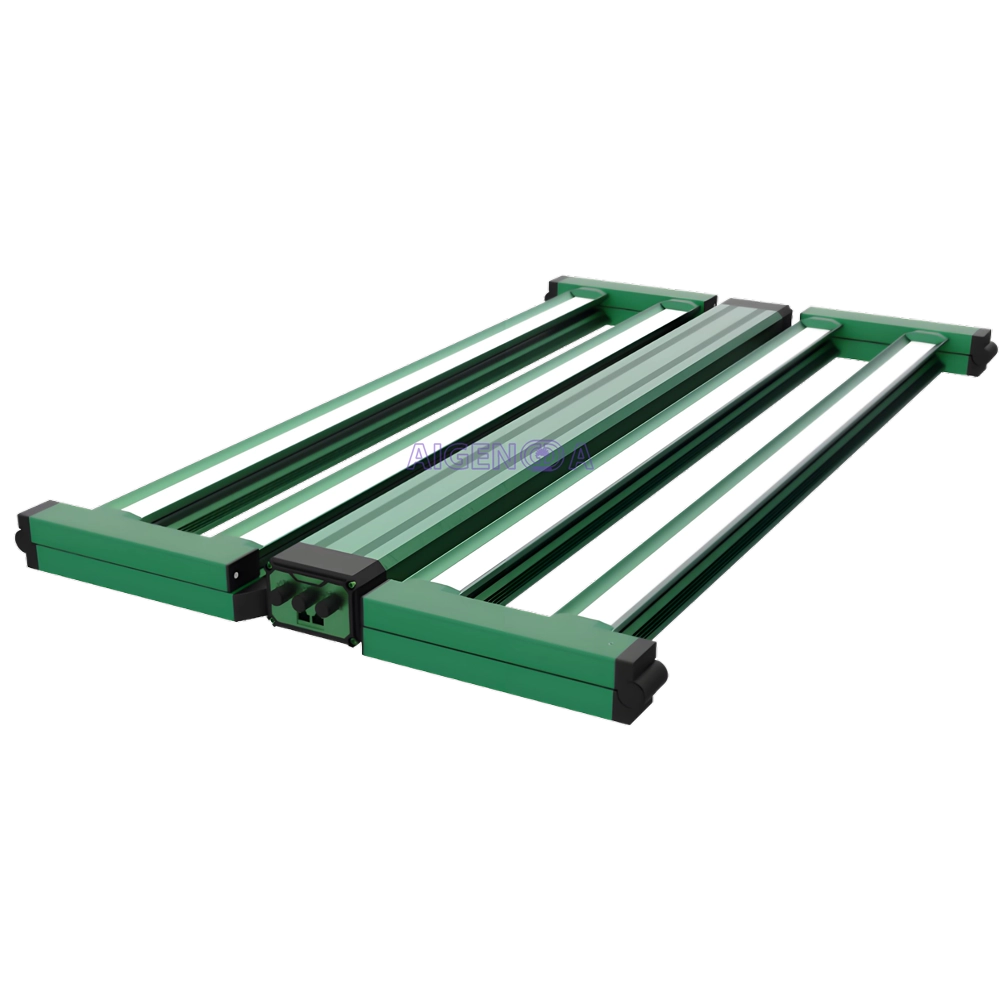

720W/860W/1060W Pavo Series Foldable LED Growth(2)

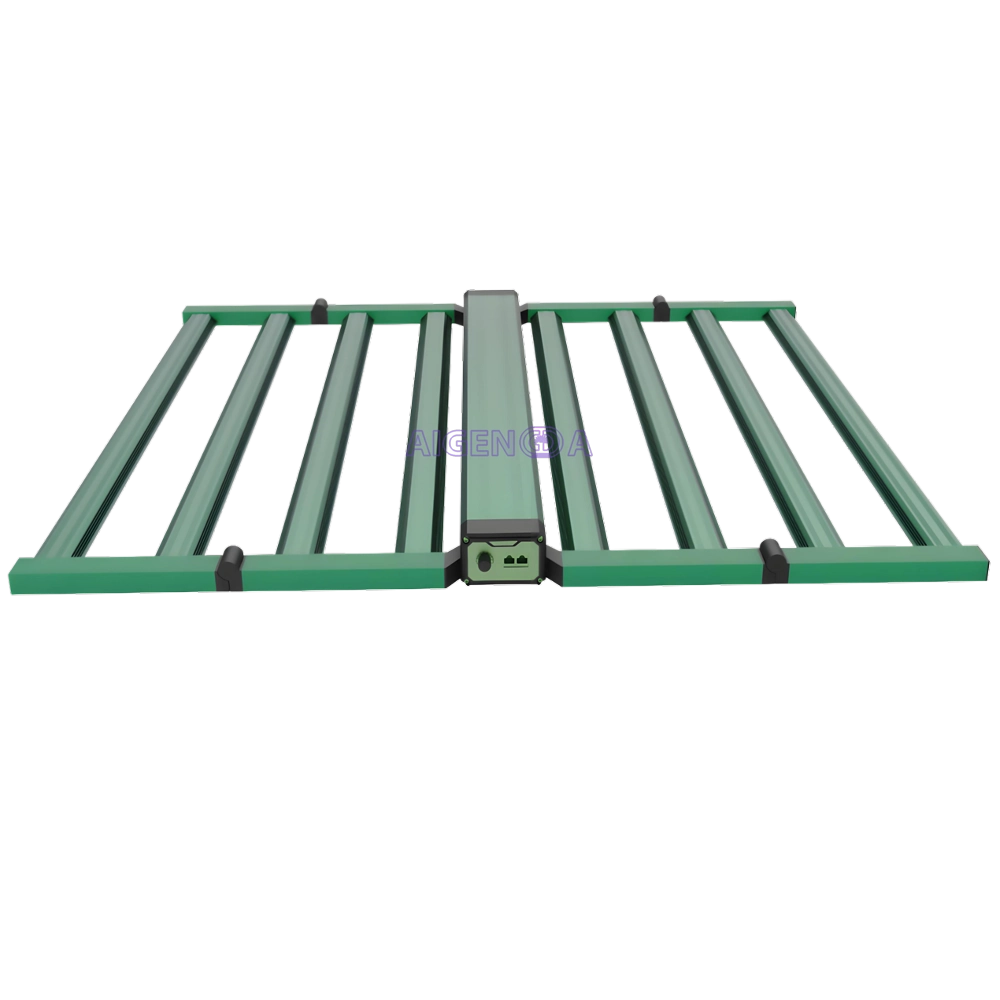

720W/860W/1060W Pavo Series Foldable LED Growth(3)

Full-spectrum light output

Suitable for every stage of plant growth

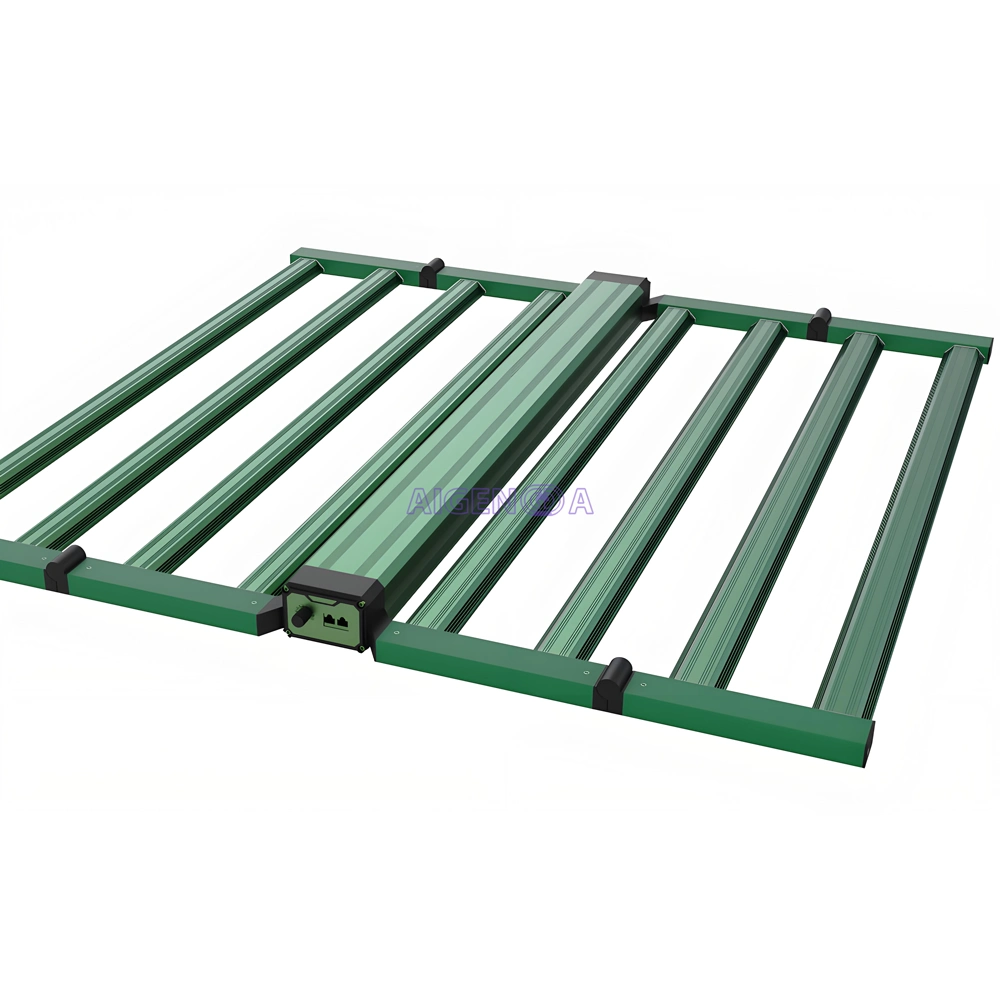

720W/860W/1060W Pavo Series Foldable LED Growth(4)

3-Channel Independent Dimming × 0-10V Precision Control

The upgraded Pavo Series LED grow lights feature an innovative 3-channel independent dimming system, each supporting 0-10V stepless linear dimming for precise 0-100% smooth light intensity control. Users can independently adjust red, blue, and white spectral intensities, freely combining 12 lighting formulas to perfectly match full-cycle needs from germination to flowering. With professional-grade dimming accuracy and an industrial-grade drive system, energy efficiency improves by 30% while extending lifespan, delivering laboratory-level light environment solutions for greenhouses, home hydroponics, and beyond.

720W/860W/1060W Pavo Series Foldable LED Growth(5)

720W/860W/1060W Pavo Series Foldable LED Growth(6)

720W/860W/1060W Pavo Series Foldable LED Growth(7)

720W/860W/1060W Pavo Series Foldable LED Growth(8)

Specifications

Model	GDG-PVGL720N-4x4-1X/2X/3X	GDG-PVGL860N-4x4-1X/2X/3X	GDG-PVGL1060N-4x4-1X/2X/3X
Output Power	720W	860W	1060W
Input voltage	AC100～277V/180-528V	AC100～277V/180-528V	AC100～277V/180-528V
LED	Samsung LED/OSRAM LED	Samsung LED/OSRAM LED	Samsung LED/OSRAM LED
PPF	2050 umol/S	2500 umol/S	3050 umol/S
PPE	2.9 umol/J	2.9 umol/J	2.9 umol/J
Dimming signal	3 in 1 dimming 0-10V	3 in 1 dimming 0-10V	3 in 1 dimming 0-10V
Dimensions	L1105W1100H65.5mm	L1105W1100H65.5mm	L1105W1100H65.5mm
Packing size	113595880mm	113595670mm	113595775mm
Weight	10.4kg	11.6kg	12.8kg
Gross weight	13kg	14.2kg	15.5kg
Beam angle	120°	120°	120°
Cooling method	passive cooling	passive cooling	passive cooling
Max.Ambient temp.	104°F/40°C,max	104°F/40°C,max	104°F/40°C,max
CRI	85	85	85
L90	5000hours	5000hours	5000hours
Warranty	3-5year	3-5year	3-5year

Obtain comprehensive specifications for each product!

Application Scenarios

LED grow lights are used in vertical farms, greenhouses, indoor farming, hydroponics, home gardening, research labs, and seedling propagation. They provide energy-efficient, customizable light for all plant growth stages, enhancing yield and quality in various cultivation environments.

Indoor cannabis farm solutions

Indoor Vegetable Farm Solutions

Algae farm solutions
